Specifications SDS814X HD 100MHz frequency band 12-bit vertical resolution maximum 2GSas sample rate 4 analog channel 50 MPTS maximum memory length 500,000 wfmss waveform capture rate 1 M input impedance Features 12-bit high resolution, real-time sampling rate up to 2 GSas memory depth up to 50100 Mpts, variable trigger and decoding, powerful arithmetic function, efficient power analysis, excellent loop response test The main unit provides a 3 year standard warranty. Product Weight 5.5 lbs 2.6 kg Dimensions Length x Height x Width x 12.3 x 5.9 x 5.2 inches 312 x 151 x 132.6 mm Accessories Power cable x 1, USB cable x 1, Probe x CH, Calibration certificate, Quick Start Manual User guide can be downloaded from tm-co.co.jp product introduction page. If you have any questions, please contact infotm-co.co.jp SIGLENT Product Service Center

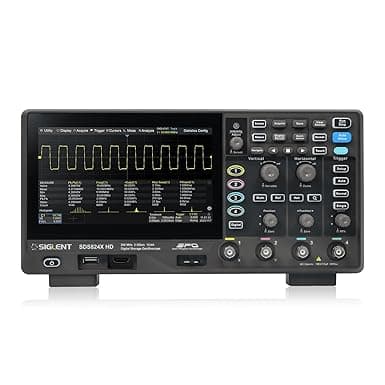

SDS800XHD Digital Storage Oscilloscope

Key Features

70MHz, 100MHz, 200MHz bandwidth models

12-bit high resolution

Real-time sampling rate up to 2GSas

Memory depth up to 50100 Mpts

Up to 500,000wfms waveform capture rate sequence mode

Supports 7 Touch Screen, External Mouse and Keyboard
