100 MHz bandwidth Real-time sampling rate up to 1 GSas,Record length up to 14Mpts Serial bus triggering and decoding Standard, supports protocols IIC, SPI, UART, CAN, LIN Advanced measurements on full memory 14 Mpts Large 7-inch TFT-LCD display with 800 480 resolution

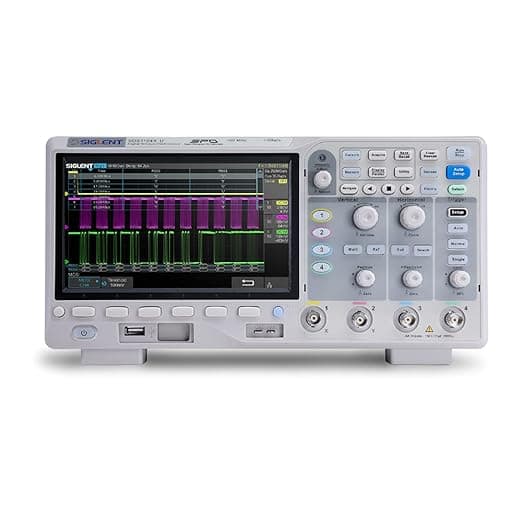

SIGLENTs SDS1000X-U Series Super Phosphor Oscilloscopes is available in one bandwidth, 100 MHz. It has a maximum sample rate of 1 GSas and a maximum record length of 14 Mpts. For ease of use, the most commonly used functions can be accessed with its user-friendly front panel design.The SDS1000X-U series employs SPO Super Phosphor Oscilloscope technology that provides excellent signal fidelity and performance. It comes with an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 framessec sequence mode. The SDS1000X U also employs a 256 level intensity grading display function and a color temperature display mode not found in other models in this class.Another powerful addition is the new 128 k point FFT math function that gives the SDS1000X-U very high-frequency resolution when observing signal spectra. SDS1000X-U also supports searching and navigating. The features and performance of SIGLE NTs new SDS1000X-U cannot be matched anywhere else in this price class.
