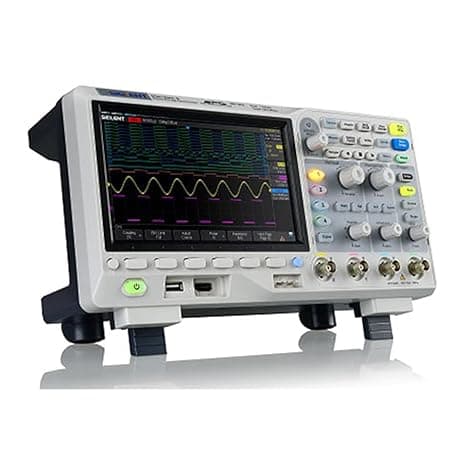

100MHz, 4 Channel, 1GSas, 14Mpts with low speed serial protocol trigger and decode

The SDS1000X-E series employs a new generation of SPO Super-Phosphor Oscilloscope technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uVdiv, an innovative digital trigger system with high sensitivity and low jitter, and waveform capture rate of 400, 000 framessec sequence mode. The SDS1000X -E also employs a 256 -level intensity grading display function and a colour temperature display mode not found in other models in this class. SIGLENTs latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding for IIC, SPI, UART, CAN, LIN bus types is included. The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new1million point FFT math function that gives the SDS1000X -E very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co -processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. The features and performance of SIGLENTs new SDS1000X -E cannot be matched anywhere else in this price class. The four channel series includes even more functions, including searching and navigating, on-screen Bode plot, 16 digital channelsOption, an externals powered 25 MHz AWG moduleOption, a USB WIFI adapterOption, and an embedded application that allows remote control via web browser.
