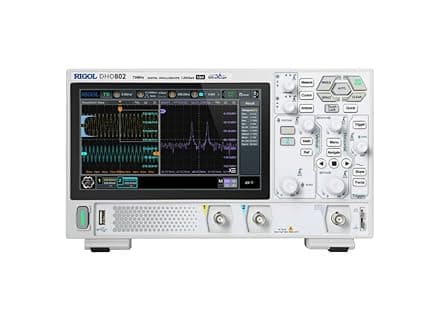

Ultra low background noise makes the signal more pure, no miss a small signal. Provides 12-bit hardware high resolution for all series. Up to 70MHz analog bandwidth, up to 2 analog channels, dual channel models come standard with external trigger ports. Up to 1.25 GSas real-time sampling rates Storage depth up to 25 Mpts Vertical sensitivity range of 500 Vdiv to 10 Vdiv Ultra Aqua mode provides up to 1 million wfmss waveform capture rate Supports gray scale digital real-time brightness function on the 256 floor. Supports waveform search and navigation function to quickly identify signal abnormalities. It has a 7 inch 1024 600 high definition touch screen. The new Flex knob provides an easier to use interactive experience. USB Device Host, LAN, and HDMI ports come standard with all models. New design provides convenient maneuverability. Supports online version upgrade The main body of RIGOL equipment provides a 3 year standard warranty. Product Weight 3.9 lbs 1.78 kg. Dimensions 10.5 x 6.4 x 3.0 inches 265.36 x 161.75 x 77.38 mm Accessories Power cable, USB cable, ground wire, probe x 2

Input Impedance 1M, Frequency Band 70MHz, Number of Input Channels 2, Max Memory Length 25Mpts, Vertical Resolution 12-bit, Sample Rate 1.25GSas, Waveform Intake Rate 1,000,000 wfmss
